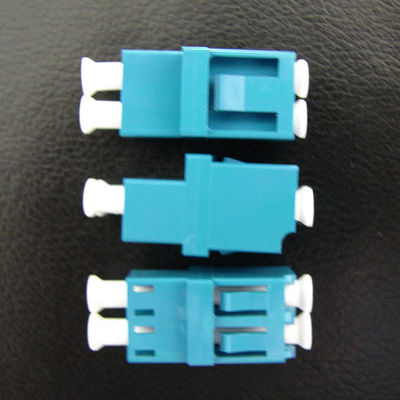

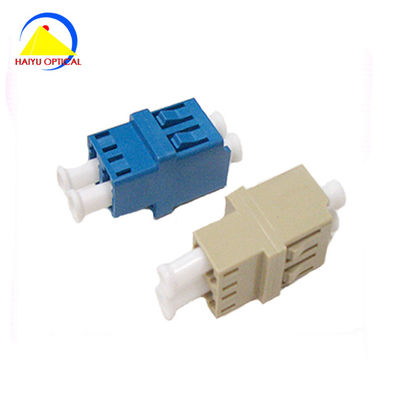

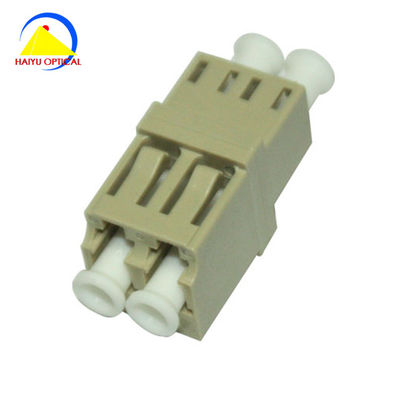

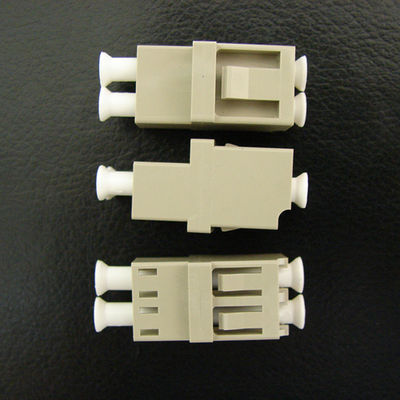

LC duplex high low type fiber optic adapter

LC duplex high-low type fiber optic adapter

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.

Features

CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical

Application

Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options

Specifications

Repeatability: ≥1000 times
Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
Compatibility: ≤ 0.2 dB

LC adapters family.

The LC Optical fiber adapters has simplex, duplex, quad types. According to shape, it has flange, flangeless, high low, high step, etc. According to color, it has blue, green, beige, black, aqua, purple etc.

The normal housing material is plastic, also has metal housing.

Haiyu optical certificate.

Haiyu optical has award ISO CE and Rosh certificate for our products.
